CATCHING A WAVE
JET FLOW GATE TESTING BRINGS A CROWD

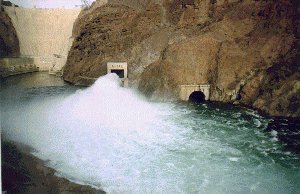

Photo of lower jet flow gate test."Jet flow gate testing" doesn't sound like an event that would bring reporters, cameramen, and news helicopters out to Hoover Dam, located a fair distance from their regular news beats in downtown Las Vegas. But in June, 1998, as a torrent of water sent whitecaps rippling down the Colorado, the tests fascinated observers and garnered newspaper and television coverage from several local media outlets.

Twelve obsolete needle valves were replaced with new jet flow gates in the outlet works at Hoover Dam to meet criteria that require the dam to release 73,000 cubic feet per second without using the spillways. Previously, the outlet works had a release capacity of about 50,000 cubic feet per second (one cubic foot is 7.48 gallons).

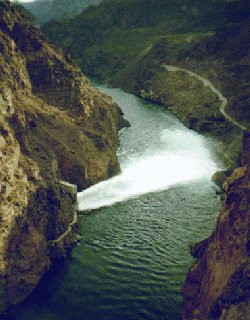

Photo of water released through jet flow gates.The jet flow gates are devices that are designed to operate under high pressure. They include a steel plate that can be raised or lowered to either prevent or allow water to be discharged from a structure, much like the faucet in your sink controls the flow of water. The eight gates in the lower valve houses are 68 inches in diameter and each is capable of discharging approximately 3,800 cubic feet per second (28,424 gallons per second) at the present lake elevation. When a gate is closed, the force of the water behind it is 248 pounds per square inch, or 900,736 pounds per gate! The four gates in the upper valve houses are 90 inches in diameter and each is capable of discharging approximately 5,400 cubic feet per second (40,000 gallons per second).

Photo with all jet flow gates open.The test was performed to obtain water release data from the new jet flow gates and ensure there was no loss of efficiency to the generators during their operation.

The speed of the water coming out of each of the lower gates at maximum flow was calculated at 120 miles per hour! At maximum opening, each gate discharged about 28,424 gallons of water per second. That's enough water to fill the average backyard swimming pool in less than one second!

The upper gates are situated 180 feet above the river. Water from the gates shoots across the canyon to strike the wall on the other side. The water exits the gates at 120 feet per second, or 83 miles an hour. When all four upper gates are in operation they could fill an Olympic size swimming pool, 500,000 gallons, in three and a half seconds.
